Colored EPDM Pipe Boot Flashings (Round)

Description

Features:

• All Around Design Excellence, This universal flashing has been designed to fit virtually all panel configurations.
• Sleeveflexibility absorbs vibration and pipe movement caused by expansion/contraction.
• Easy on-site customization can accommodate all normal installations.
• Adaptable Base The base is designed to mold to most panel configurations and roof pitches regardless of pipe location.
• On-Site Customization Pipe diameters can be seen clearly for proper fitting.

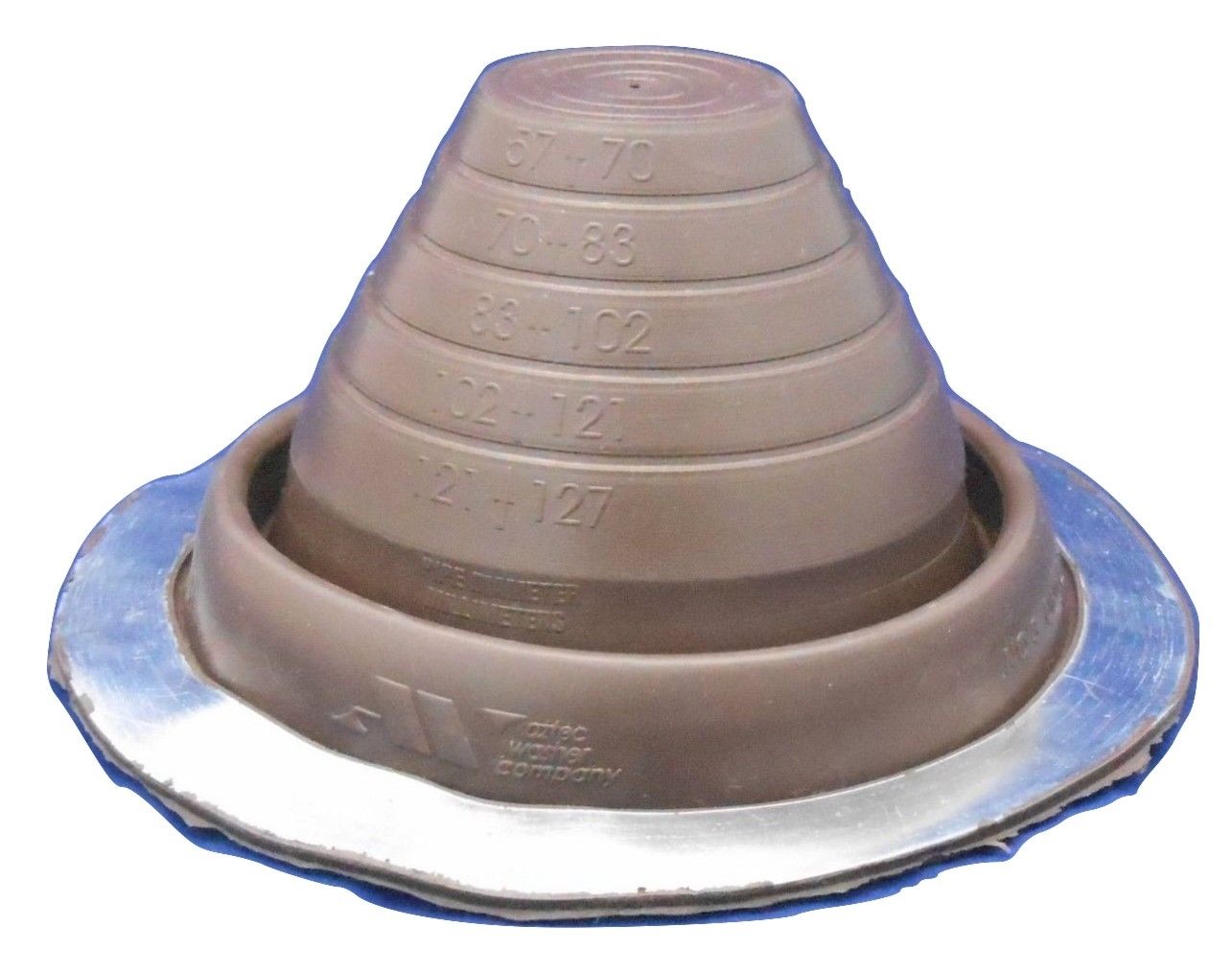

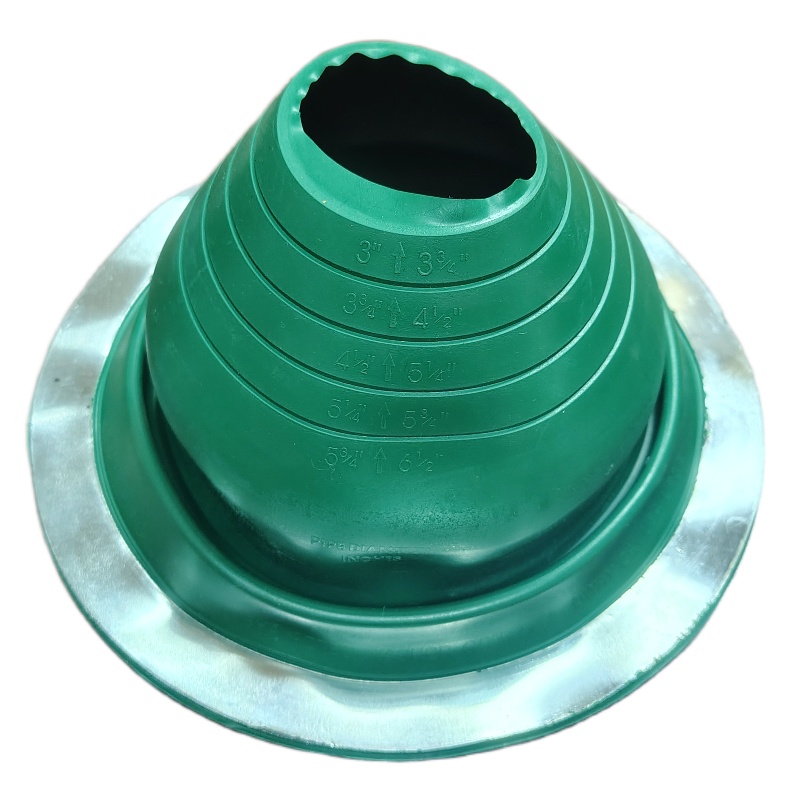

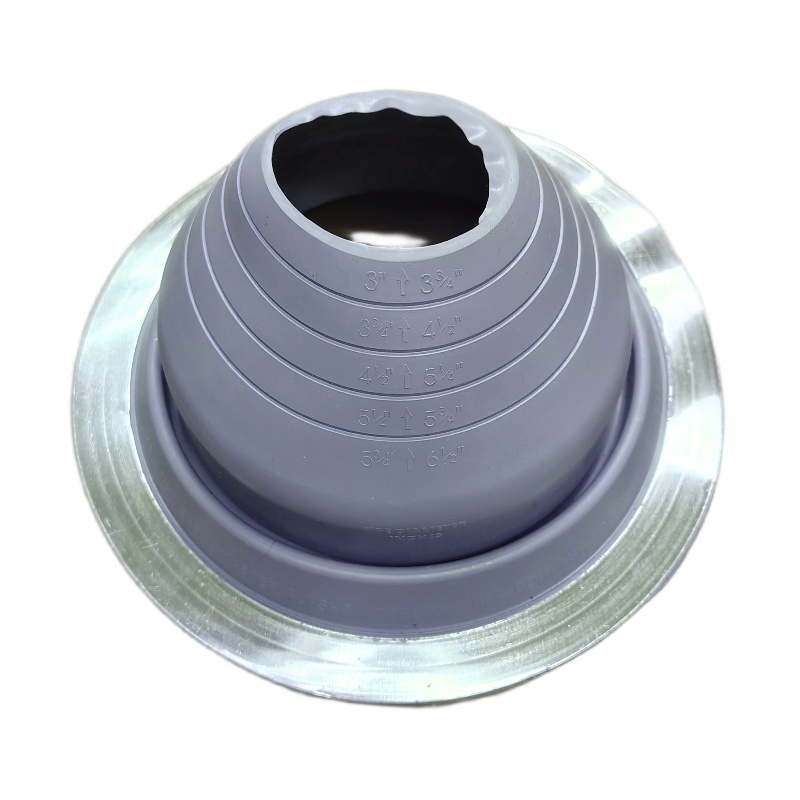

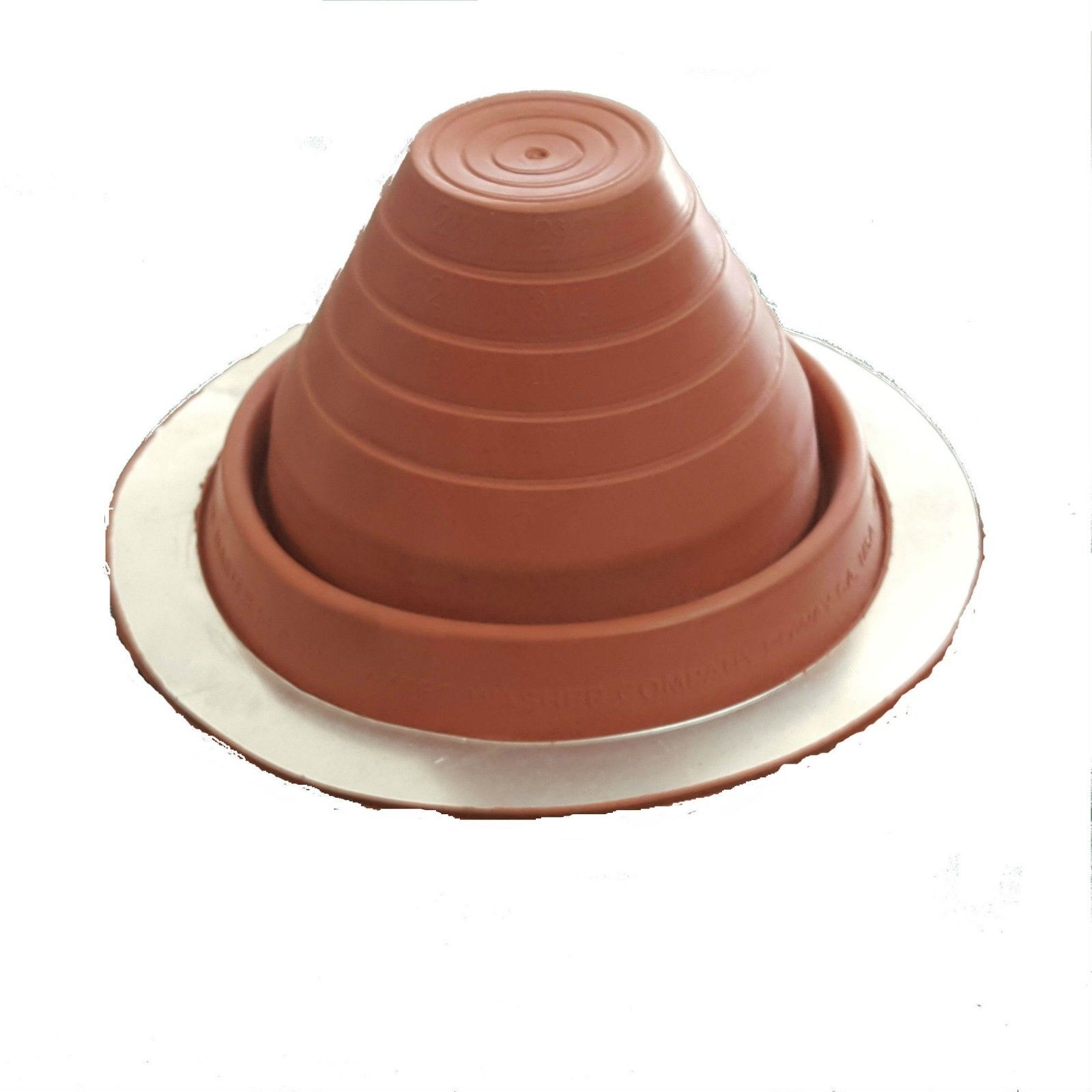

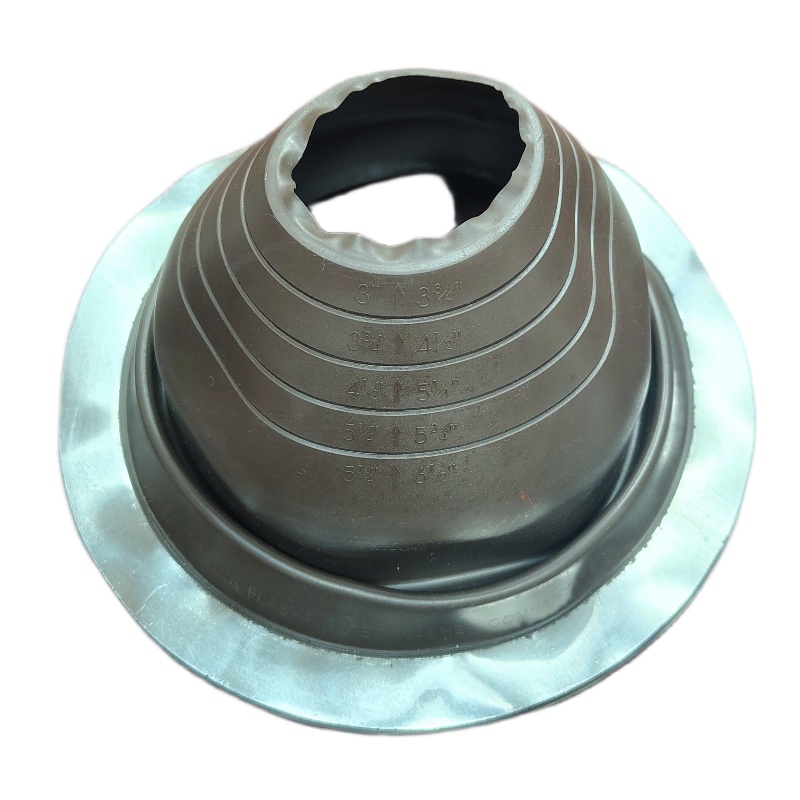

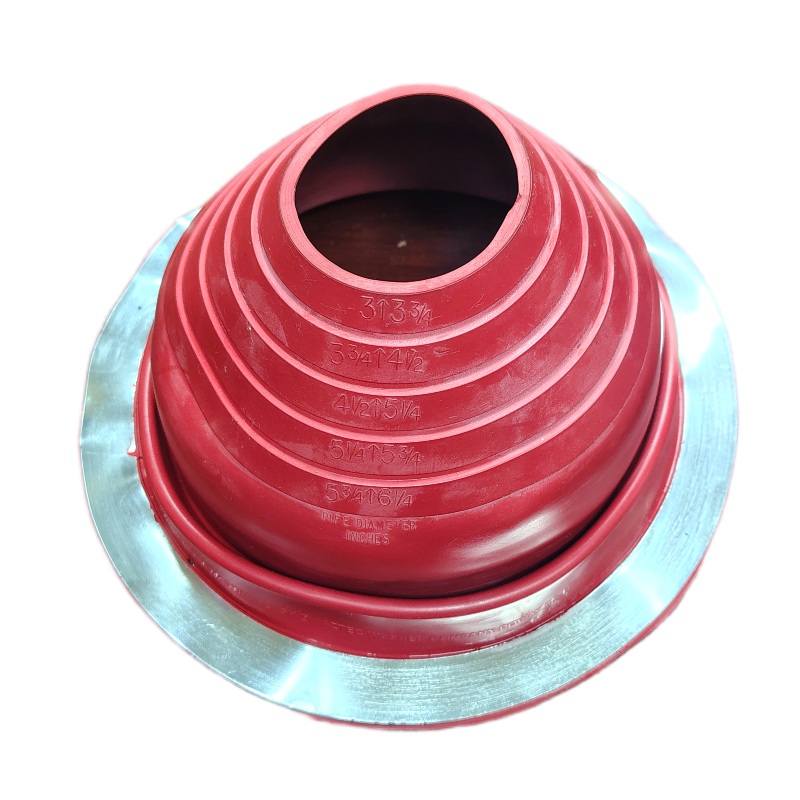

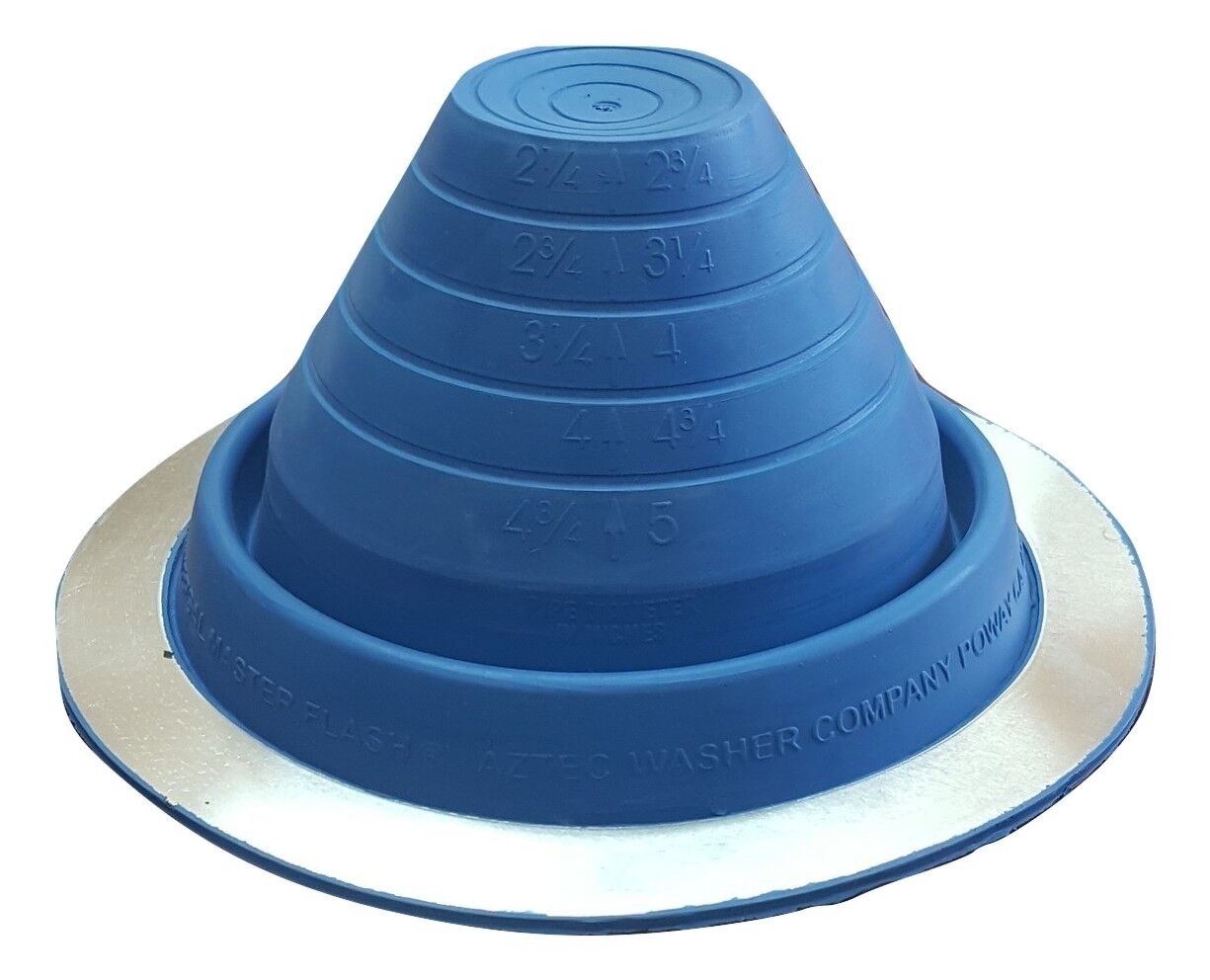

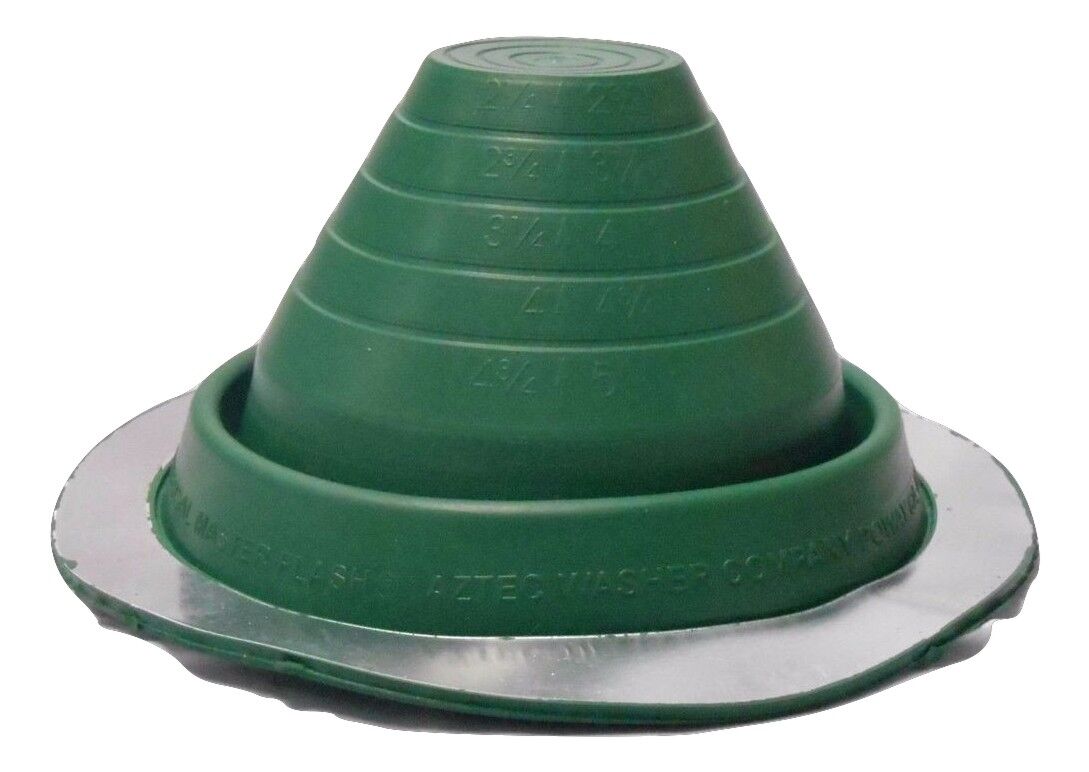

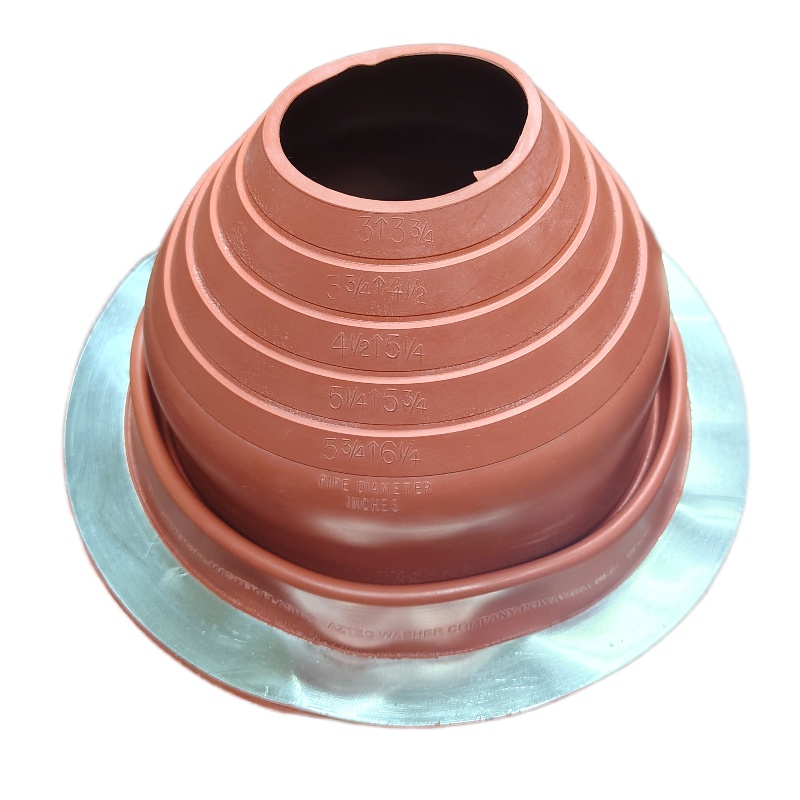

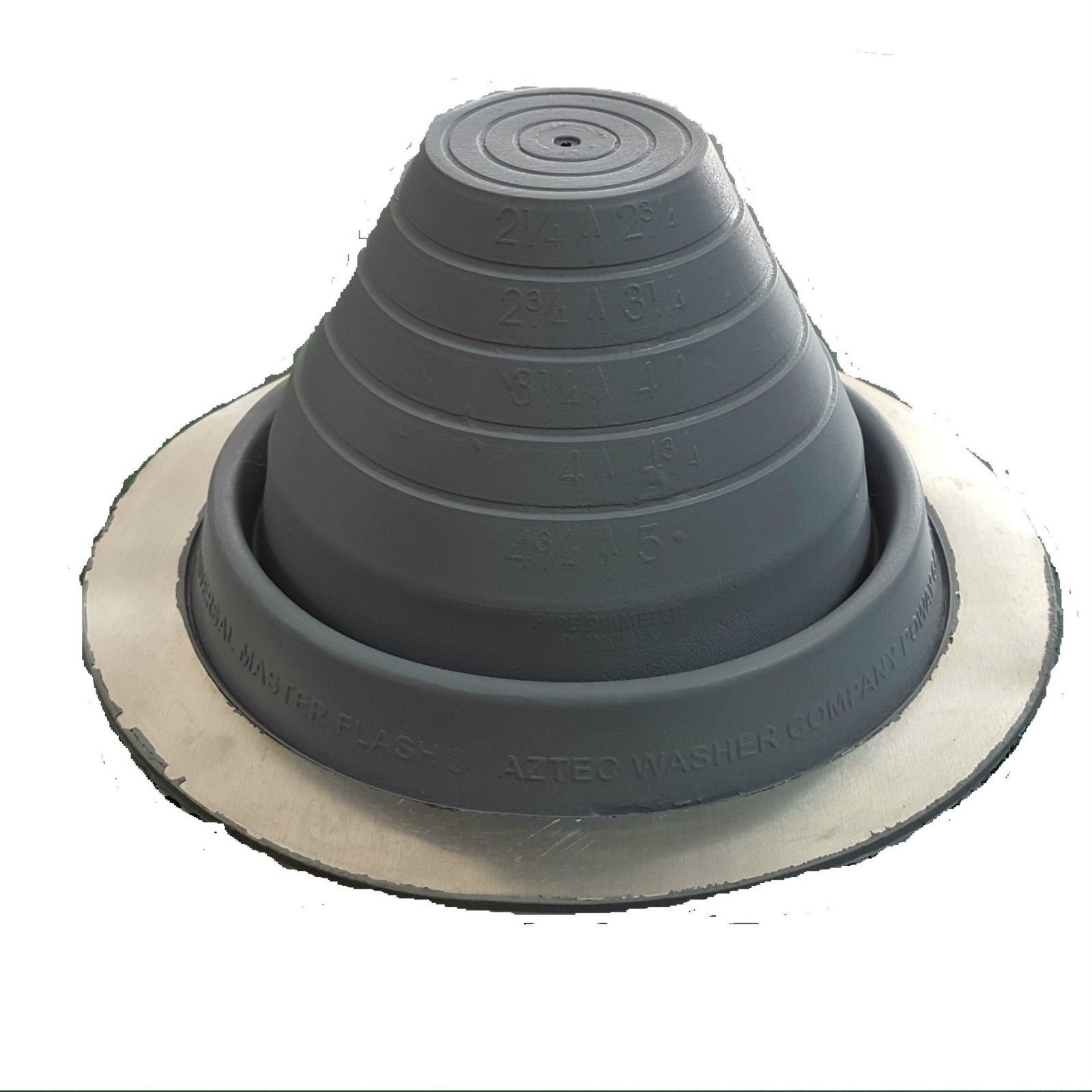

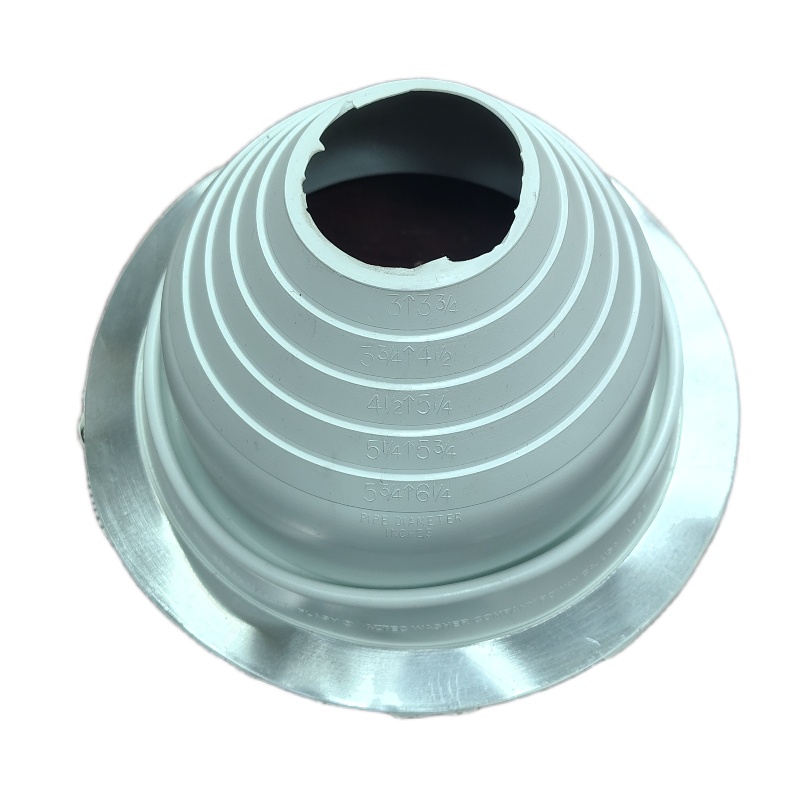

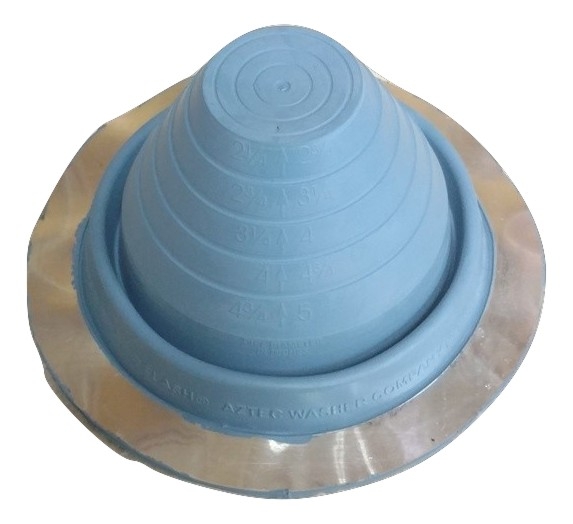

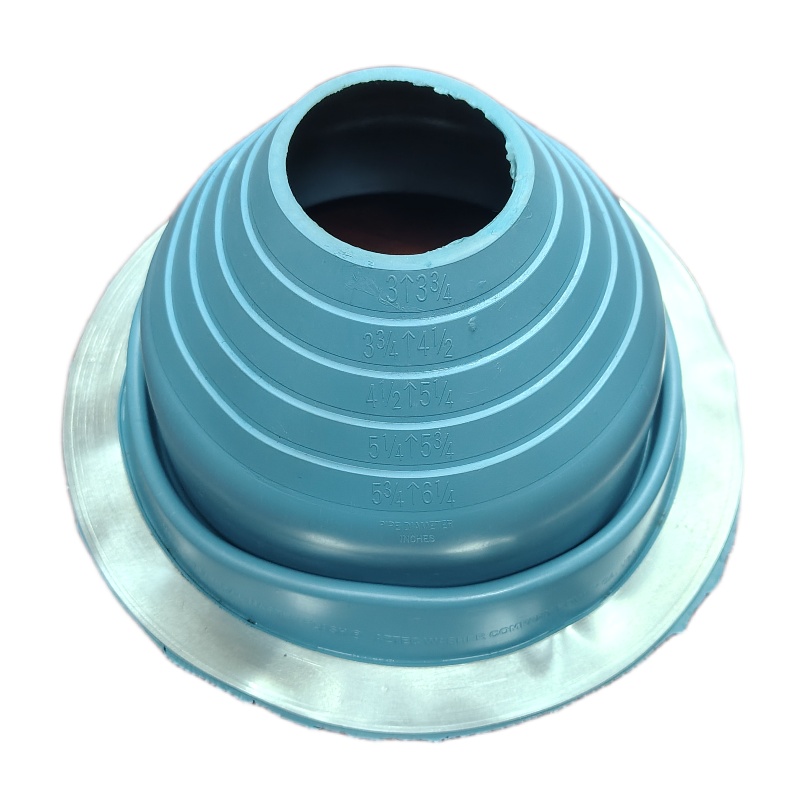

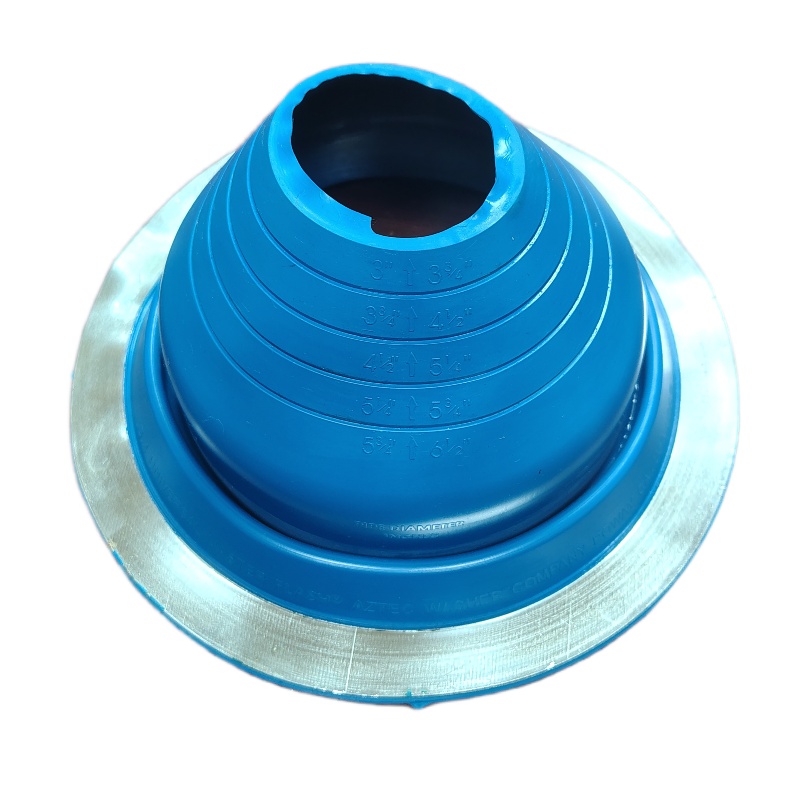

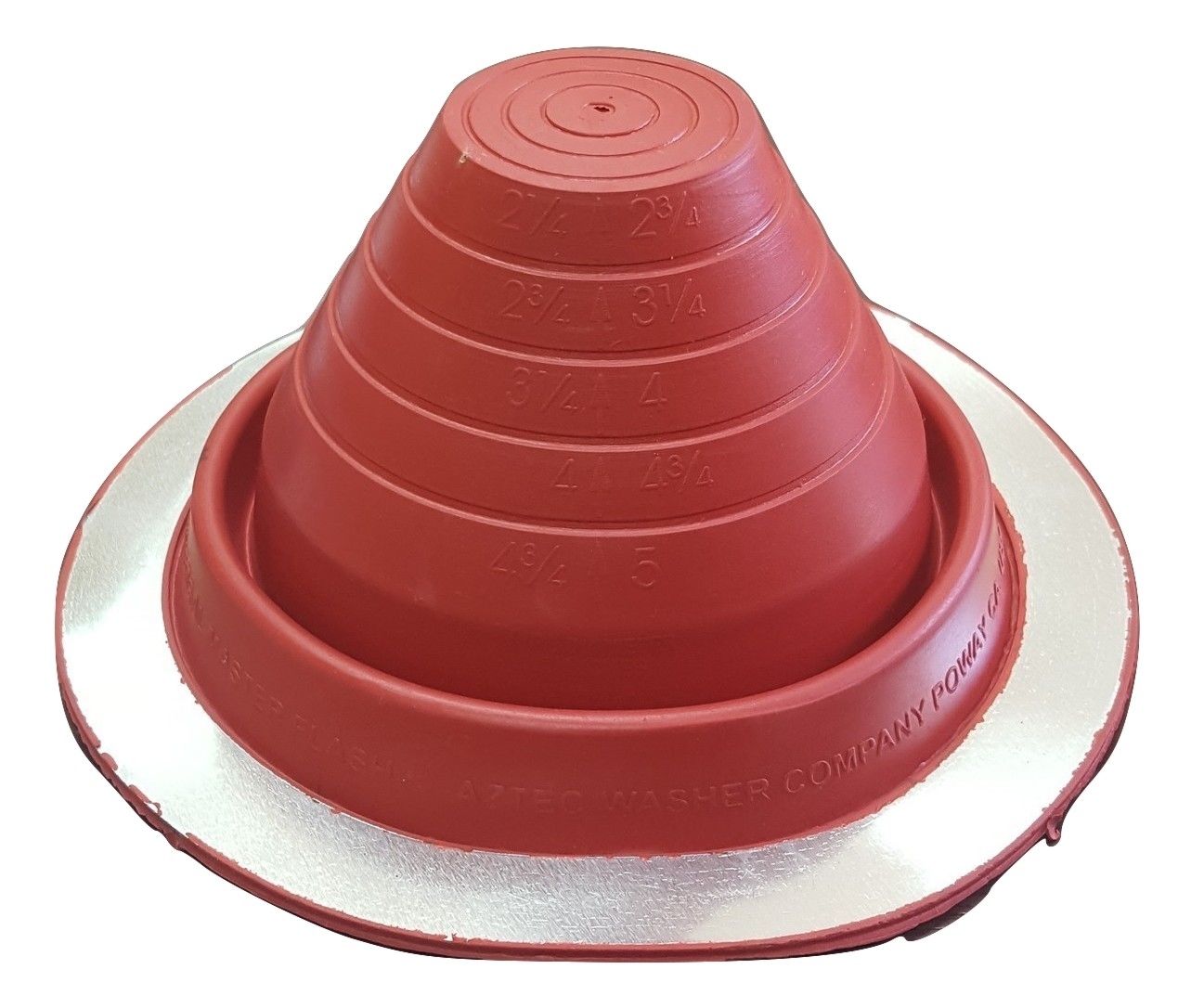

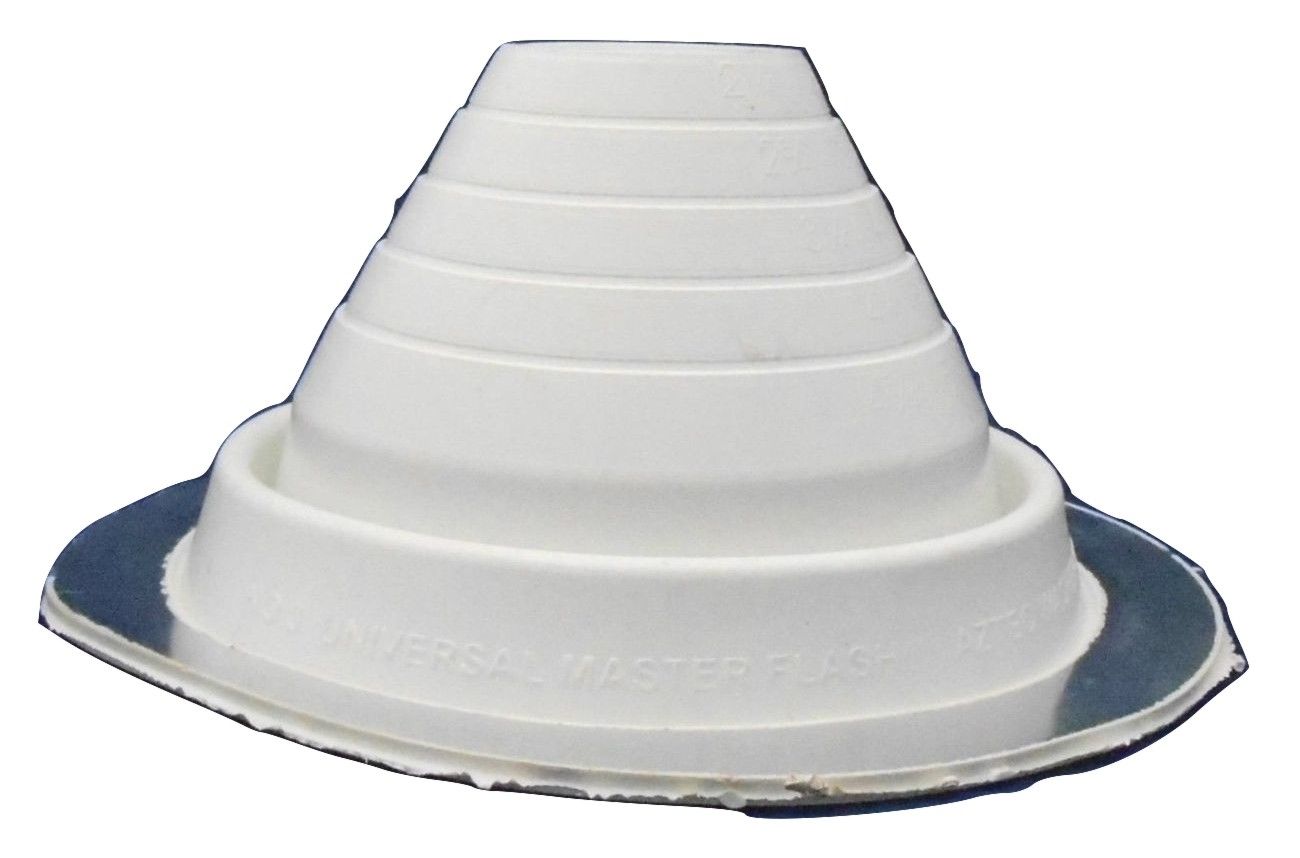

• Weather Protection made from EPDM in multiple colors including Green, Bright Red, Terracotta, Dark Gray, Brown, Dark Blue, White, Light Blue. These flashings are compounded specifically for maximum resistance to weathering due to ozone and ultraviolet light.

Pipe Diameter Sizes

Temperature Data:

ADVANCED OZONE RESISTANCE tested to: EPDM 70 hour @ 500 pphm

HIGH TEMPERATURE RESISTANCE Tested to:

Intermittent EPDM +135°C (+275°F)

Continuous EPDM +100°C (+212°F)

LOW-TEMPERATURE RESISTANCE tested to: EPDM – 55°C (-67°F)

COMPRESSION SET Maximum: EPDM 25%

Additional Information:

Pipe Boot Size Chart (.pdf opens in new tab)- Click here

Aztec Washer Company Roof Pitch Calculator for Pipe Boot Model (opens in new tab)- Click here
