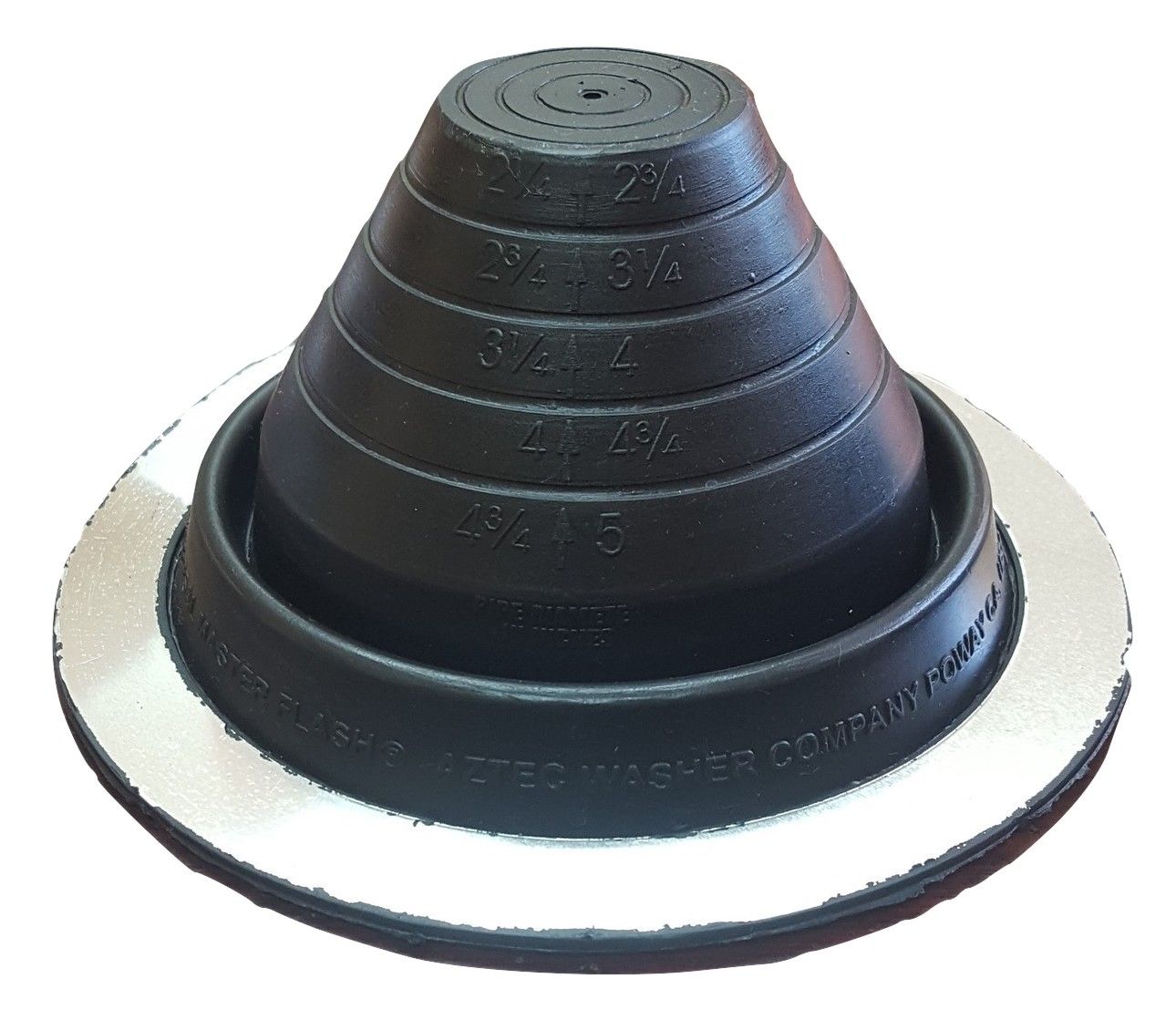

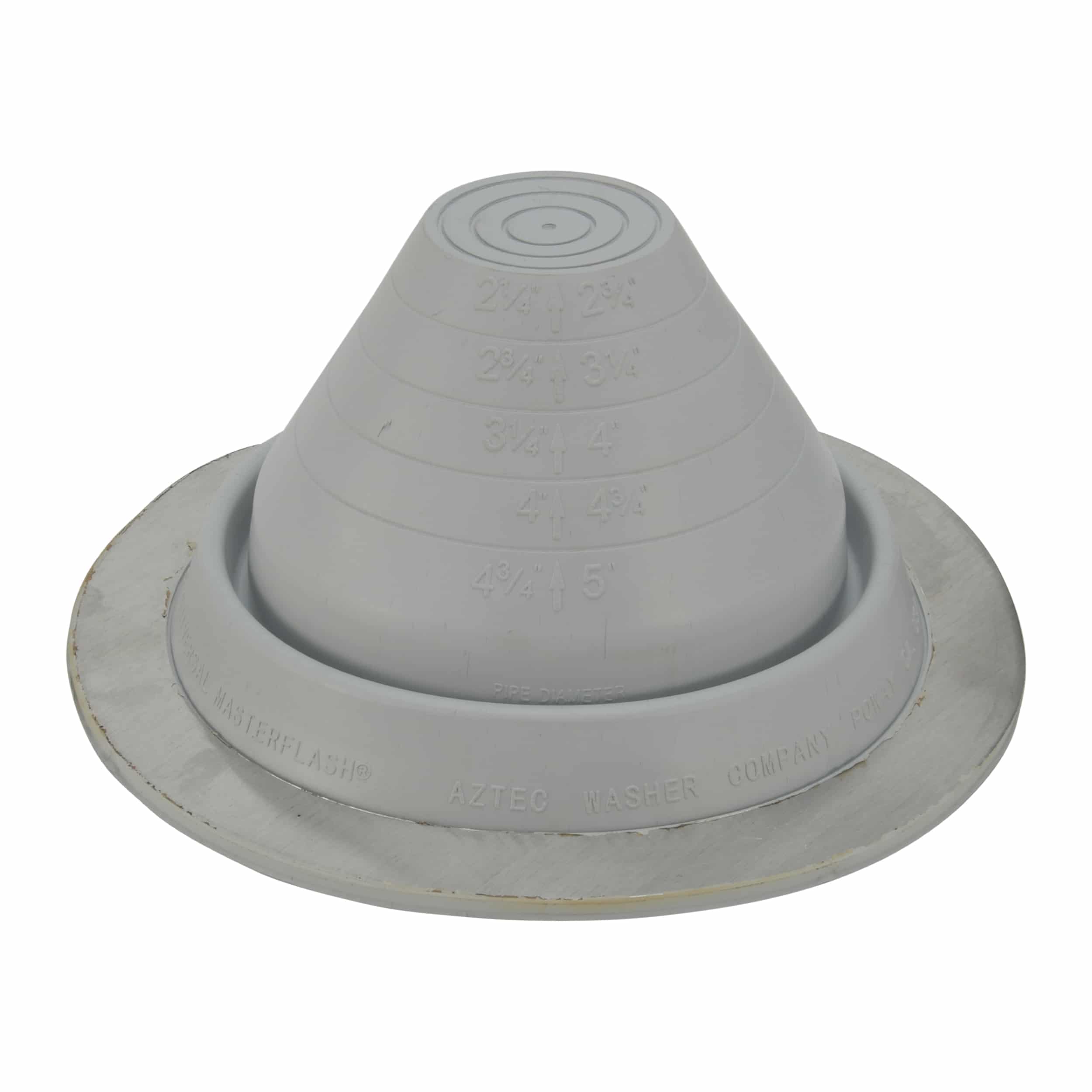

EPDM Pipe Boot Flashings (Non-High Temp) (Round)

Description

Features:

• All Around Design Excellence, This universal flashing has been designed to fit virtually all panel configurations.
• Sleeveflexibility absorbs vibration and pipe movement caused by expansion/contraction.
• Easy on-site customization can accommodate all normal installations.
• Adaptable Base The base is designed to mold to most panel configurations and roof pitches regardless of pipe location.
• On-Site Customization Pipe diameters can be seen clearly for proper fitting.
• Sizes: #1, #2, #3, #4, #5, #6, #7, #8, #9
• Fits: Closed Top to 19” (0 to 482mm) Pipes
• Weather Protection Made of Gray EPDM, these flashings are compounded specifically for maximum resistance to weathering due to ozone and ultraviolet light.

Temperature Data:

ADVANCED OZONE RESISTANCE tested to: EPDM 70 hour @ 500 pphm

HIGH TEMPERATURE RESISTANCE Tested to:

Intermittent EPDM +135°C (+275°F)

Continuous EPDM +100°C (+212°F)

LOW-TEMPERATURE RESISTANCE tested to: EPDM – 55°C (-67°F)

COMPRESSION SET Maximum: EPDM 25%

Additional Information:

Pipe Boot Size Chart (.pdf opens in new tab)- Click here

Aztec Washer Company Roof Pitch Calculator for Pipe Boot Model (opens in new tab)- Click here
